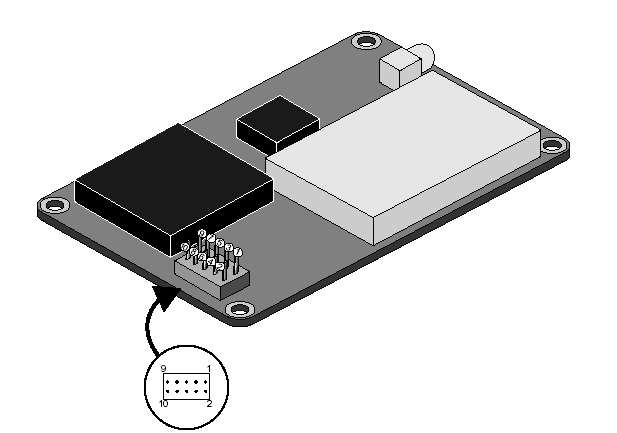

Motorola Oncore GPS
Pin # Signal Name Description
1 BATTERY Externally applied backup power ( + 5 V)
2 +5V PWR +5 V regulated main power
3 GROUND Ground (receiver)
4 VPP Flash memory programming voltage
5 RTCM IN RTCM input
6 1PPS One pulse per second signal
7 1PPS RTN One pulse per second return
8 TTL TXD Transmit 5V logic
9 TTL RXD Receive 5V logic
10 TTL RTN Transmit/receive return
